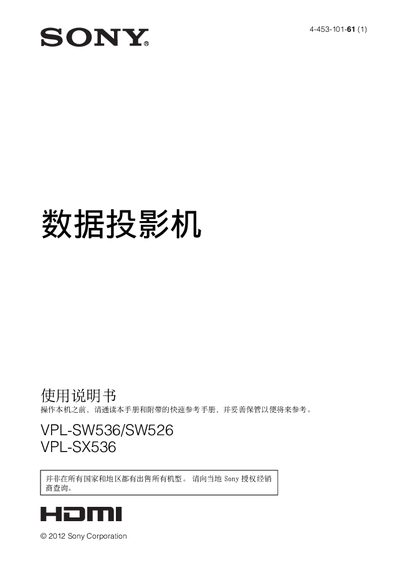

The Sony VPL-SW536/SW526/VPL-SX536 data projector user manual provides setup, operation, network and maintenance instructions.
This manual covers the Sony VPL‑SW536, VPL‑SW526 and VPL‑SX536 data projectors, describing their hardware layout, connections, and basic operation. It guides users through installing the projector, selecting inputs, adjusting image settings, and using advanced features such as network control and USB display.
Key sections include controller location, input/output connectors, image adjustment, menu settings, network functions, USB Media Viewer, projector station for network presentations, and maintenance procedures like lamp replacement and air‑filter cleaning. This manual is written in Chinese.
| Projection system | 3 LCD |
|---|---|
| Effective display size | 0.75 in (19.0 mm) for VPL‑SW536/SW526 |
| Effective pixels | 3,072,000 (1280×800) for VPL‑SW536/SW526 |
| Light source | High‑pressure mercury lamp, 210 W |
| Brightness | 3100 lm (VPL‑SW536) |
| Power consumption | 291 W (100 V) for VPL‑SW536/SW526 |
| Input connectors | HDMI (INPUT C), RGB/YPBPR (INPUT A/B) |
Clean the air filter as instructed in the maintenance chapter.
Use the network functions section to configure the LAN port and access the projector via a web browser.
Connect a USB storage device and select the USB Display function as described in the USB Media Viewer section.
