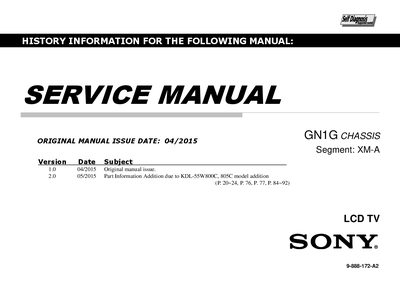

Service manual for Sony GN1G chassis LCD TVs, covering safety warnings, disassembly, diagnostics, and repair procedures.
This service manual provides qualified technicians with detailed instructions for servicing Sony LCD TVs that use the GN1G chassis. It includes model listings, safety precautions, component identification, and step‑by‑step disassembly procedures for the Smart Core, wireless case, and panel components.
The manual also describes safety‑check procedures, leakage testing methods, and the built‑in self‑diagnosis function with LED flash codes. Specific warnings such as the need for an isolation transformer, handling of the LCD panel, and lead‑free solder handling are emphasized throughout the document.
