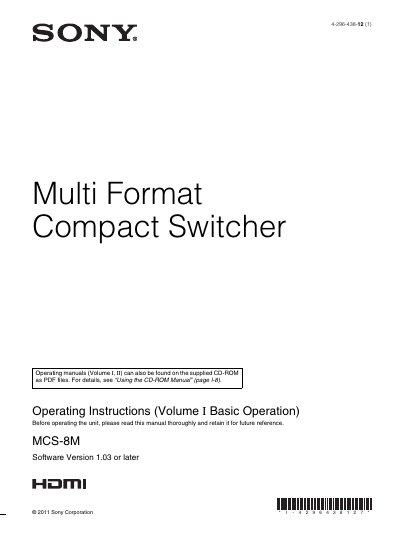

Operating instructions for the Sony MCS-8M Multi Format Compact Switcher covering setup, basic video/audio switching and safety.
The Sony MCS-8M Multi Format Compact Switcher is a compact video switcher that supports SD, HD and 3D formats. This manual provides the basic operation procedures, including video switching, audio mixing, effect application and snapshot handling.
It also details installation requirements, power‑cord specifications, ventilation clearances and safety warnings for use in the USA, Europe, Canada and other regions. Advanced settings are available on the accompanying CD‑ROM (Volume II).
| Supported video formats | 1080i/50, 1080i/59.94, 720p/50, 720p/59.94, 480i/59.94, 576i/50 |
|---|---|
| Power input | 100 to 240 V AC ±10%, 50/60 Hz |
| Power consumption | 100 V: 0.7 A, 240 V: 0.3 A |
| Dimensions (W × H × D) | 420 × 122 × 265 mm |
| Mass | Approx. 5.0 kg |
| Video input – SDI | 4 × BNC, 75 Ω, 0.8 Vp‑p ±10 %, 1.5 Gbps |
| Audio input – analog | XLR+TRS combo (MIC/LINE 1‑2), –44 dBu to +4 dBu |
