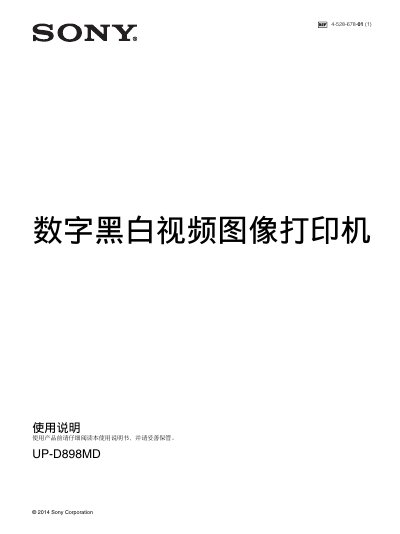

The Sony UP-D898MD user manual provides setup, operation, safety, maintenance, and specifications for the digital black‑and‑white video image printer.
The Sony UP‑D898MD is a digital black‑and‑white video image printer designed for medical and clinical environments. It prints high‑resolution images using a thin‑film thermal head and supports three types of Sony‑branded printing paper.
This manual covers safety precautions, power requirements, installation, USB connection, driver installation, paper handling, menu operation, contrast and brightness adjustment, routine cleaning, troubleshooting, and full technical specifications. This manual is written in Chinese.
| Power supply voltage | 100‑240 V, 50/60 Hz |
|---|---|
| Input current | 1.3 A to 0.6 A |
| Operating temperature | 5 °C to 40 °C |
| Dimensions | 154 × 88 × 240 mm (W × H × D) |
| Weight | 2.5 kg |
| Print speed (high speed) | ≈1.9 s per image (960 × 1280 dots) |
| Maximum image resolution | 4096 × 1280 pixels |
| Grayscale levels | 256 (8‑bit) |
| Memory capacity | 4096 × 1280 × 8 bits |
| Interface | Hi‑Speed USB (USB 2.0) |
Only Sony‑branded UPP‑110S, UPP‑110HD, or UPP‑110HG paper may be used; other paper types are not supported.
Connect the printer to a computer using a Hi‑Speed USB (USB 2.0) cable and install the supplied driver software.
All connected equipment must be certified to IEC 60601‑1, IEC 60950‑1, IEC 60065, or other applicable IEC/ISO standards.
