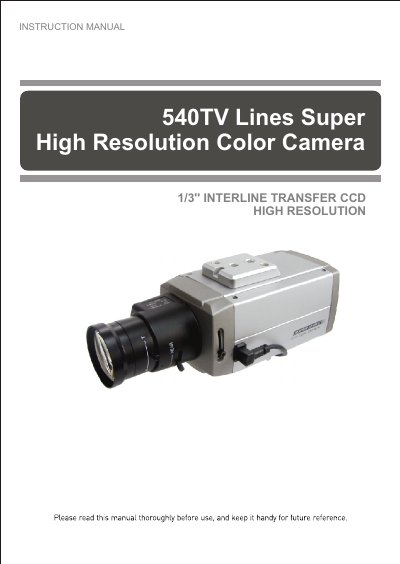

The Sony 1/3'' Interline Transfer CCD High Resolution Color Camera User Manual provides installation, operation, safety, and maintenance instructions.
The Sony 1/3'' Interline Transfer CCD High Resolution Color Camera is designed for closed‑circuit television (CCTV) and security surveillance applications, offering 540 TV lines of color resolution and low‑light performance. It operates from DC 12 V or AC 24 V and requires a certified Class 2 power supply.
This manual covers safety warnings, installation steps, lens and iris adjustments, back‑focus and zoom adjustments, troubleshooting, preventive maintenance, and full technical specifications. Qualified service personnel should perform any repairs or adjustments beyond the user‑serviceable functions.
| Resolution | 540 TV Lines Color (0.25 Lux) |
|---|---|
| Minimum illumination (color) | 0.25 Lux @ F1.2 |
| Power input | DC 12 V / AC 24 V |
| Power consumption | 5.2 Watts |
| Dimensions (W×H×D) | 66 mm × 56 mm × 120 mm |
| Video output | 1.0 Vp‑p (75 Ω, composite) |
Use a certified/listed Class 2 power supply, either DC 12 V or AC 24 V, as specified in the manual.
Do not remove the cover; refer all servicing to qualified service personnel and follow the safety warnings in the manual.
Adjust the auto iris lens using the LEVEL volume on the rear side of the camera, ensuring the iris is fully open before fine‑tuning.
The camera can produce color images at a minimum illumination of 0.25 Lux at an aperture of F1.2.
