This document introduces the world's smallest and lightest electronic pressure switch, which features small size, easy installation, and a wide range of pressure settings.

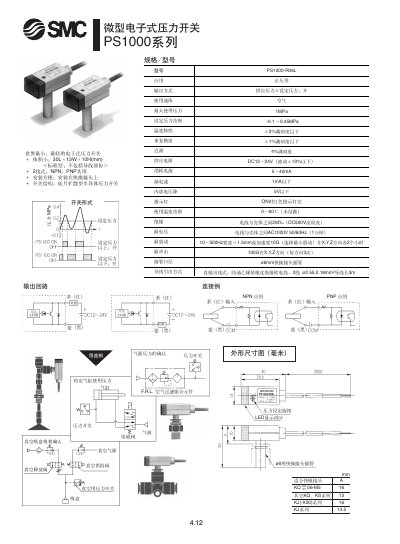

This manual describes the PS1000 series micro electronic pressure switch, including its switch types, set‑pressure ranges, wiring examples, and typical applications such as vacuum suction verification, air‑source pressure detection, and cylinder pressure monitoring.
Technical data such as dimensions (30 mm × 13 mm × 10 mm), maximum operating pressure (1 MPa), supply voltage (DC12‑24 V), current consumption (5‑40 mA), and environmental limits are listed, along with connection diagrams for NPN and PNP configurations and LED indicator functions. This manual is written in Chinese.
| Maximum Operating Pressure | 1 MPa |
|---|---|
| Supply Voltage | DC12‑24 V (±10%) |
| Operating Temperature Range | 0 ~ 60 °C (non‑condensing) |
| Insulation Resistance | 2 MΩ (DC500 V test) |
| Withstand Voltage | AC1000 V 50/60 Hz (1 min) |
The switch opens when the pressure is above the set point.
For NPN, red (茶) is the input and black (蓝) is the output; for PNP, the colors are reversed.
The switch measures 30 mm × 13 mm × 10 mm (L × W × H).
