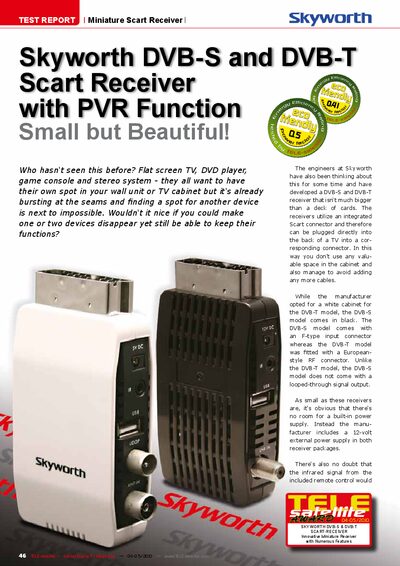

The Skyworth DVBTM0001 and DVBSM0001 miniature SCART receivers are reviewed with features, specifications, and performance details.
Skyworth’s miniature SCART receivers are designed to fit behind a TV, offering DVB‑S and DVB‑T reception in a size comparable to a deck of cards. Both models include an external 12‑volt power supply, an infrared remote, and a SCART connector that eliminates the need for extra cabling.
The receivers provide PVR functionality via a USB interface, support multiple scanning modes (Standard, NIT, BlindScan), DiSEqC motor control, and a comprehensive on‑screen menu with language options. Video outputs include CVBS, RGB, and S‑Video, while HDMI is not supported. Power consumption meets eco‑design standards, and the devices also feature a built‑in game, calendar, and calculator.
| Model | DVBTM0001 / DVBSM0001 |
|---|---|
| Function | Miniature SCART Receiver with PVR Function |
| Channel Memory | 4000 |
| Symbolrate | 1.3‑45 Ms/sec |
| DiSEqC | 1.0, 1.2, 1.3 (USALS) supported |
| HDMI Output | No |
| Video Output | CVBS, RGB, S‑Video |
| Power Supply | 12 V external |
| Dimensions | 84.6 × 53.5 × 25.2 mm |
No, the receiver does not have an HDMI output.
The receiver can store up to 4000 channels.
