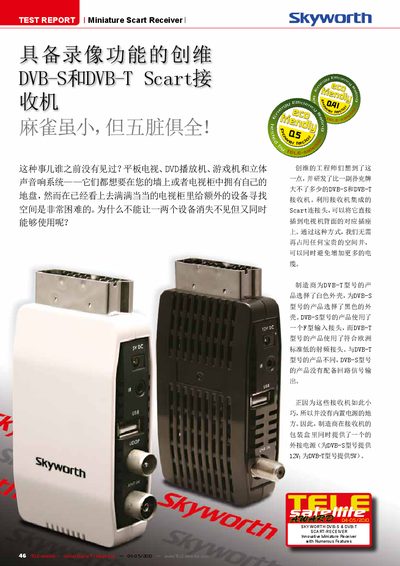

Skyworth Mini Box DVBTM0001 / DVBSM0001 Test Report
The Skyworth Mini Box is a compact SCART‑connected receiver with PVR functionality, offered in two versions: DVBTM0001 (DVB‑T) with a white case and 5 V external power, and DVBSM0001 (DVB‑S) with a black case and 12 V external power. Both models support PAL and NTSC, provide composite, RGB and S‑Video outputs, and include a USB port for external storage and recording.
The report details menu navigation, satellite and terrestrial channel scanning modes (standard, NIT and blind scan), DiSEqC motor control, and multimedia features such as music playback, picture viewer and built‑in games. Power‑saving functions automatically switch the unit to standby after three hours of inactivity.
Skyworth DVBTM0001 / DVBSM0001 specifications
| Function | Miniature SCART Receiver with PVR Function |
|---|---|
| Channel Memory | 4000 |
| Symbolrate | 1.3‑45 Ms/sec |
| DiSEqC support | 1.0, 1.2, 1.3 (USALS) |
| HDMI output | No |
| Scart video output | CVBS, RGB, S‑Video |
| Audio output | Yes |
| RS232 interface | Yes |
| Power supply (DVB‑S) | 12 V external |
| Power supply (DVB‑T) | 5 V external |
| Dimensions | 84.6 × 53.5 × 25.2 mm |
| Standby power consumption | 5 W (DVB‑S) / 2 W (DVB‑T) |
All Skyworth DVBTM0001 / DVBSM0001 documents by type
Questions answered in these manuals
What external power supplies are required for the DVB‑S and DVB‑T models?
The DVB‑S model uses a 12 V external power supply, while the DVB‑T model uses a 5 V external power supply.
Can the Mini Box record a program while watching another live channel?
No, the Mini Box cannot record a program and watch a live channel at the same time.
Does the Skyworth SCART receiver support HDMI output?
No, the receiver does not have an HDMI output.
From: Skyworth DVBTM0001/DVBSM0001 Scart Receiver Test Report
How many channels can be stored in the receiver’s memory?
The receiver can store up to 4000 channels.
