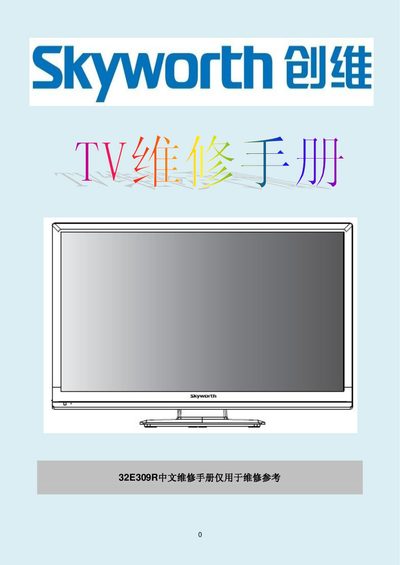

Repair manual for the Skyworth 32E309R LCD TV with safety notes, specifications, operation guide, fault handling and schematics.
This service manual provides detailed information for repairing the Skyworth 32E309R LCD television. It covers safety precautions, basic environmental specifications, and step‑by‑step operating instructions.
The document also includes fault‑handling procedures, disassembly diagrams, factory‑mode adjustments, electrical block diagrams, circuit diagrams and a complete bill of materials to assist service technicians. This manual is written in Chinese.
| Operating Humidity | 20% RH – 80% RH |
|---|---|
| Atmospheric Pressure | 86 kPa – 106 kPa |
| Power Supply | AC 220 V |
Press the power key on the remote control or the channel‑selection key on the control panel.
The TV uses a soft‑start method and needs about 15–30 seconds before the image appears.
