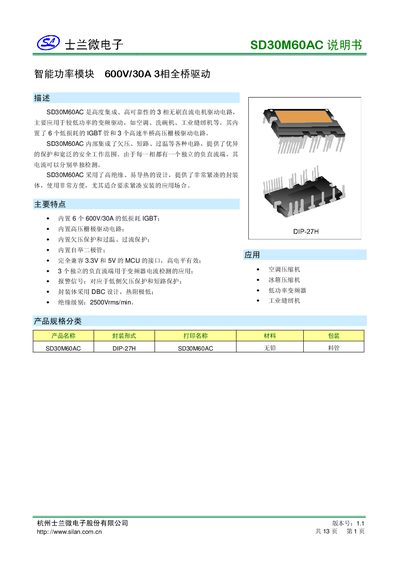

The Silan SD30M60AC user manual provides specifications, pin descriptions, and application guidelines for this 600 V/30 A three‑phase bridge driver.
The SD30M60AC is a highly integrated, high‑reliability three‑phase brushless DC motor driver module designed for low‑power inverter applications such as air‑conditioners, dishwashers, and industrial sewing machines. It incorporates six 600 V/30 A low‑loss IGBTs and three high‑speed half‑bridge gate‑drive circuits, offering built‑in undervoltage, short‑circuit, and over‑temperature protection.
The manual details electrical parameters, pin assignments, switching loss characteristics, recommended wiring and bootstrap circuits, as well as typical application schematics and mechanical dimensions. It also includes installation torque recommendations and safety notices for system designers and integrators. This manual is written in Chinese.
| Maximum collector voltage (VCE) | 600 V |
|---|---|
| Gate drive supply voltage (VCC) | 20 V |
| Insulation level | 2500 Vrms/min |
| Operating temperature range | -40 °C to 150 °C |
The module integrates six 600 V/30 A low‑loss IGBTs.
The recommended torque is 0.62 N·m (range 0.5–0.8 N·m).
The isolation voltage rating is 2500 Vrms/min.
