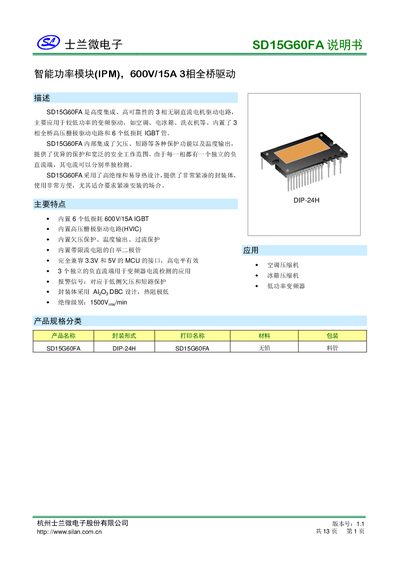

The Silan SD15G60FA Intelligent Power Module User Manual provides specifications, pin assignments, protection features, and application guidelines.
The SD15G60FA is a highly integrated 3‑phase brushless DC motor driver IPM designed for low‑power inverter applications such as air‑conditioners, refrigerators and washing machines. It features six low‑loss 600 V/15 A IGBTs, built‑in high‑voltage gate drivers, and comprehensive protection functions including undervoltage, short‑circuit and temperature monitoring.
This manual details the module’s electrical characteristics, maximum ratings, pin layout, switching loss data, temperature output behavior, control timing diagrams, typical application circuits and mechanical dimensions. It also includes recommended mounting torque and wiring guidelines for reliable integration. This manual is written in Chinese.
| Maximum DC bus voltage (VPN) | 450 V |
|---|---|
| Surge DC bus voltage (VPN Surge) | 500 V |
| IGBT peak collector current (ICP) | 30 A |
| Control supply voltage (VCC) | 20 V |
| High‑side gate drive voltage (VBS) | 20 V |
| Recommended mounting torque | 0.62 N·m |
The module provides three independent low‑side DC terminals for current detection.
The recommended torque is 0.62 N·m (typical range 0.5–0.8 N·m).
