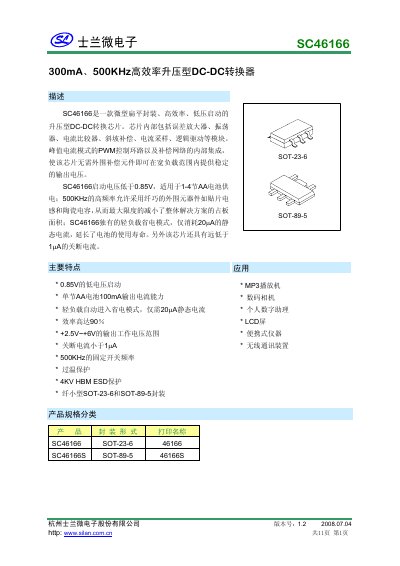

The Silan SC46166 is a 500 kHz, high‑efficiency boost DC‑DC converter with low‑voltage start‑up and ultra‑low quiescent current.
The SC46166 is a miniature, flat‑pack boost DC‑DC converter designed for battery‑powered applications such as MP3 players, digital cameras and PDAs. It operates from a single AA cell (0.85 V start‑up) and provides a regulated output of 2.5 V to 6 V at up to 100 mA.
The device integrates error amplifiers, oscillators, current comparators and logic drivers, eliminating the need for external compensation components. It features a power‑save mode that draws only 20 µA static current and includes over‑temperature and ESD protection. This manual is written in Chinese.
| Startup voltage | 0.85 V |
|---|---|
| Output voltage range | +2.5 V ~ +6 V |
| Efficiency | up to 90 % |
| Shutdown current | < 1 µA |
| Switching frequency | 500 kHz (fixed) |
| Operating temperature range | -40 °C ~ +85 °C |
| Storage temperature range | -65 °C ~ +125 °C |
The converter operates at a fixed switching frequency of 500 kHz.
It works from –40 °C up to +85 °C, with storage allowed from –65 °C to +125 °C.
