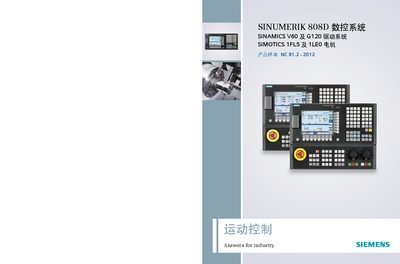

Siemens product sample presenting the SINUMERIK 808D CNC system, SINAMICS V60/G120 drives and SIMOTICS 1FL5/1LE0 motors with specs, ordering data and…
This Siemens product sample provides an overview of the SINUMERIK 808D CNC system for turning and milling, the SINAMICS V60 and G120 drive families, and the SIMOTICS 1FL5 and 1LE0 motors. It includes functional descriptions, key specifications, ordering numbers and contact information for sales and technical support.
The document also outlines certification compliance (DIN EN ISO 9001, ISO 14001), environmental considerations, and available training and service options. Detailed technical data such as input voltage, power loss, protection ratings and mechanical dimensions are listed for each hardware component. This manual is written in Chinese.
| Input voltage | 24 V DC ±20%/‑15% |
|---|---|
| Maximum power loss | 50 W |
| Front panel protection rating | IP65 |
| Rear panel protection rating | IP20 |
| Dimensions (W×H×D) | 420 mm × 200 mm × 104 mm |
| Weight (approx.) | 3.06 kg |
The SINUMERIK 808D PPU operates on 24 V DC with a tolerance of +20 %/‑15 %.
The front panel is rated IP65 when the front cover is closed.
The unit weighs approximately 3.06 kg.
