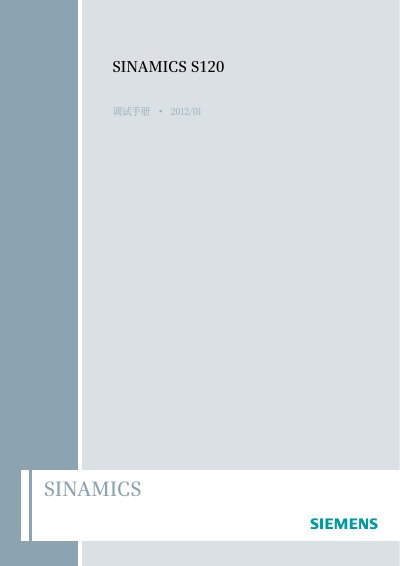

Siemens S120 Debugging Manual

The Siemens S120 debugging manual provides preparation steps, debugging procedures, and diagnostic information for the drive system.

Brand: Siemens
Category: Automation control Equipment
Document type: Service Manual
Language: Chinese
Pages: 288
File format: PDF
File size: 4.6 MB
Published: 03 October, 2026
Updated: 03 October, 2026
Model: S120
MD5 checksum: 5C8288EF44E670DA4B880C2FC23D4438
PDF: Siemens S120 Debugging Manual PDF

About this manual

This manual is intended for machine manufacturers, commissioning engineers, and maintenance personnel who work with the SINAMICS S120 drive system. It covers safety warnings, preparation, step‑by‑step debugging, and diagnostic tools.

The document includes reference tables, encoder configuration guidance, EMC compliance notes, and links to additional Siemens resources such as STARTER and online support portals. This manual is written in Chinese.

What's inside

Introduction
Scope and Audience
Preparation
Debugging Steps
Diagnostics
Appendix

Specifications

Firmware version	4.5 (IH1)
Document order number / part number	6SL3097-4AF00-0RP2

Frequently asked questions

Who should use this SINAMICS S120 debugging manual?

The manual is for machine manufacturers, commissioning engineers, and maintenance personnel who work with SINAMICS drive systems.

What firmware version does this manual apply to?

It applies to firmware version 4.5 (IH1).
