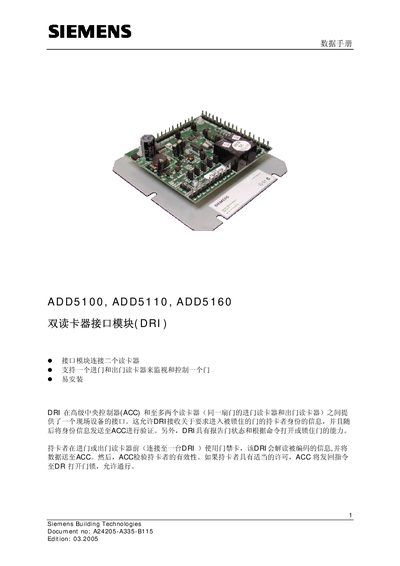

ADD5100, ADD5110, ADD5160 are dual reader interface modules (DRI) that support monitoring and controlling a door with one entry reader and one exit reader. The modules are easy to install and support all popular reader technologies. They have features such as 12Vdc auxiliary power supply, door lock/lock output/relay driver, etc.
The DRI module connects up to two card readers—one for entry and one for exit—to a Siemens Advanced Central Controller (ACC). It monitors door status, controls lock/unlock commands, and can report alarms such as shorted inputs. The module also offers three programmable auxiliary inputs and an auxiliary output for devices like buzzers or alarm lights.
Technical data include a 12‑32 VDC supply range, up to 25 W power consumption, multiple reader interfaces (Wiegand, RS‑485 CerPass), and detailed dimensions for each model. Environmental specifications cover operating temperatures from 0 °C to 50 °C and storage ranges from –10 °C to 70 °C. This manual is written in Chinese.
| Working voltage | 12-32 VDC +/-20% |
|---|---|
| Maximum power consumption | 25W |
| Reader interfaces | 2 clock/data, Wiegand |
| RS‑485 CerPass reader protocol | 1 RS‑485 CerPass |
| Communication interface | 1 ACC/FLN RS‑485, 2‑wire |
| Door request input | 1 button (internal or external) |
| Door magnetic sensor input | 1 sensor (internal or external) |
| Auxiliary inputs | 3 programmable points |
| Lock output | 10A/130V DC, 10A/250VAC |
| Auxiliary output | 10A/130V DC, 10A/250VAC |
| Additional power output | 12 VDC / 1 A |
| Reader extra power output | 12 VDC / 300 mA |
| ADD5100 dimensions | 125 mm × 125 mm × 34 mm |
| ADD5110 dimensions | 150 mm × 150 mm × 76 mm |
| ADD5160 dimensions | 180 mm × 180 mm × 60 mm |
| Operating temperature range | 0 °C to 50 °C |
| Storage temperature range | -10 °C to 70 °C |
| Relative humidity | 10‑90 % non‑condensing |
It supports all popular reader technologies, including all CerPass readers such as ARxx8x‑xx and ArxXx3x‑XxX.
The module provides three programmable auxiliary input points for monitoring various system aspects.
The module operates on a supply voltage of 12‑32 VDC with a tolerance of ±20 %.
Yes, it is designed for easy installation at any suitable location, either near the controlled door or centrally in the controller box.
