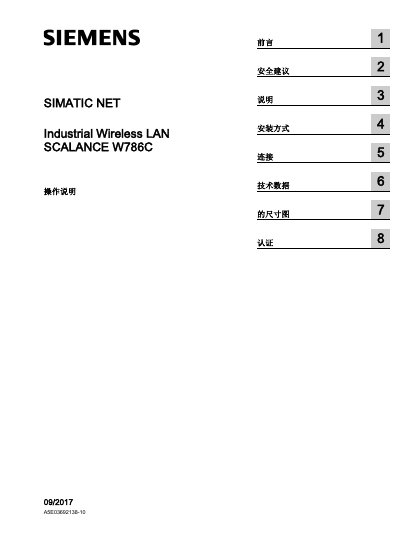

Siemens SCALANCE W786C Industrial Wireless LAN Operation Manual

About this manual

This document serves as an operation manual for the SCALANCE W786C industrial wireless LAN device. It covers essential topics including safety recommendations, equipment description, installation methods (wall mounting or DIN rail), and connection procedures for power, Ethernet, and external antennas.

The guide also details technical specifications, radiation patterns of internal antennas, physical dimensions, and relevant certifications. It includes specific information on LED indicators, reset buttons, and the structure of model identifiers for various configurations such as RJ-45 and SFP variants. This manual is written in Chinese.

What's inside

• Safety Recommendations
• Equipment Description
• Installation Methods
• Connection Procedures
• Technical Data
• Dimensions
• Certifications

Frequently asked questions

What is the minimum firmware version required for this manual?

This operation manual applies to SCALANCE W786C devices running firmware version V8.31 or higher.

Which encryption method is recommended for protecting the WLAN?

You should use WPA2/WPA2-PSK protection with AES to secure the wireless network.

What is the recommended minimum key length for HTTPS certificates?

It is suggested that you use certificates with a key length of 2048 bits.
