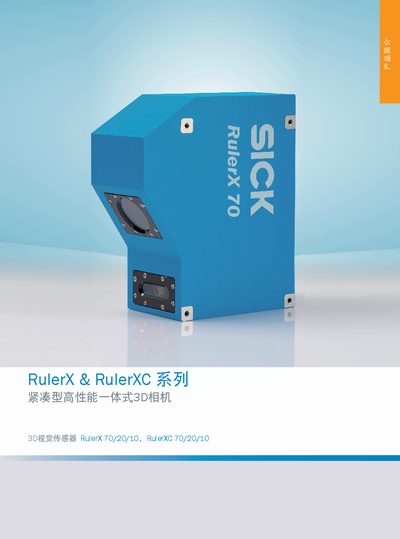

Technical datasheet for SICK RulerX and RulerXC 3D vision sensors covering specifications, dimensions and interface details.
The RulerX and RulerXC series are compact, high‑performance 3D cameras that integrate a blue laser, camera and lens in a single IP65‑rated housing. They are designed for precise measurement of tiny components in electronics, solar, metal and food‑packaging applications.
The document provides detailed technical parameters such as sensor resolution, scan rates, field of view, working distance, interface options (GigE Vision, RS‑422/TTL), power requirements and environmental ratings, as well as ordering information and recommended accessories. This manual is written in Chinese.
| Sensor resolution | 2560 × 832 px (RulerX) / 2000 × 832 px (RulerXC) |
|---|---|
| Maximum scan rate (AOI mode) | 46 k profiles/s |
| Maximum scan rate (full‑frame mode) | 7 k profiles/s |
| Field of view (RulerX 70) | 65 mm – 84 mm (horizontal) |
| Power supply | 24 V DC ±20 % |
| IP protection rating | IP65 |
The sensors provide micron‑level measurement accuracy after factory calibration.
It complies with the GigE Vision protocol and GenICam standard over Ethernet.
The housing is rated IP65 for protection against dust and water.
The sensor operates from a 24 V DC supply with a tolerance of ±20 %.
