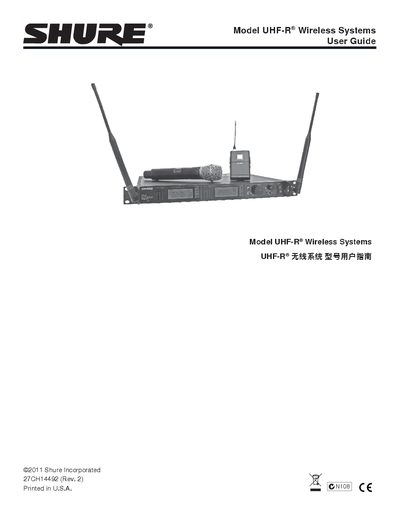

The UHF‑R® Wireless System is a professional wireless microphone solution that includes receivers, handheld and body‑pack transmitters, and optional accessories. The manual explains how to install, configure, and maintain the system for reliable audio performance.
Key sections cover important safety instructions, system components, receiver and transmitter controls, LCD interface navigation, automatic frequency selection, networking of multiple receivers, troubleshooting, and full technical specifications.
| Frequency range | 518‑865 MHz |
|---|---|
| Audio frequency response | 40‑18 000 Hz |
| Power input | 100‑240 V AC |
| Battery type (UR1, UR2) | Two AA 1.5 V cells |
Use Menu > Util > Lock and toggle the lock on or off; when locked, settings cannot be changed from the front panel.
Up to ten single or dual receivers can share one pair of antennas using the RF distribution ports.
The receiver is powered from an AC mains source of 100‑240 V via an IEC connector.
