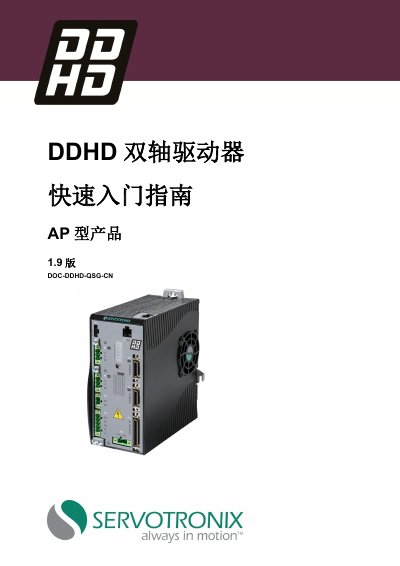

Servotronix DDHD Dual Axis Driver Quick Start Guide

This guide covers installation, wiring, configuration, and operation of the Servotronix DDHD dual-axis servo drive for medium and low voltage systems.

Brand: Servotronix
Category: Industrial Robot
Document type: Quick Start Guide
Language: Chinese
Pages: 28
File format: PDF
File size: 1.4 MB
Published: 20 October, 2026
Updated: 20 October, 2026
MD5 checksum: D94B63E2EC00A38B274FF8EA42997A6A
PDF: Servotronix DDHD Dual Axis Driver Quick Start Guide PDF

About this manual

The Servotronix DDHD is a high-performance dual-axis servo drive designed for medium and low voltage systems. It utilizes the same platform and control algorithms as the successful Servotronix CDHD servo drive. This Quick Start Guide provides detailed instructions for installation, hardware connections, software setup, and basic operation. This manual is written in Chinese.

What's inside

Introduction
Safety
Required Hardware and Tools
DDHD Installation Process
Controller Board Connections
Power Board Connections
Software Installation
Driver Status and Fault Codes

Specifications

Interface Options	Analog Voltage, Pulse Train Ref, RS232
Continuous Current (Axis 1)	1.8 A rms
Peak Current (Axis 1)	6.5 A rms
Continuous Current (Axis 2)	1.8 A rms
Peak Current (Axis 2)	6.5 A rms
CPU Requirement	2 GHz
RAM Requirement	1 GB
Hard Disk Space	1000 MB

Frequently asked questions

What software is required to configure the DDHD drive?

ServoStudio is the recommended graphical software interface used to configure and detect the drive.

What are the minimum computer system requirements for ServoStudio?

The system requires a 2 GHz CPU, 1 GB RAM, and 1000 MB of available hard disk space.

What communication interfaces can be used to connect the drive to the host?

You can use a USB port with a USB-RS232 adapter, an RS232 port, or a 4p4c plug and cable.

Download PDF (1.4 MB)
