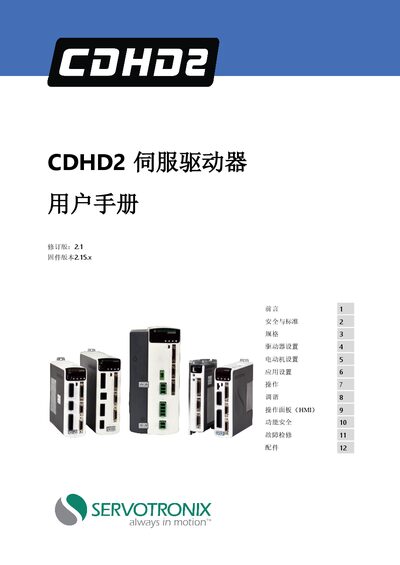

The Servotronix CDHD2 Servo Drive User Manual provides safety guidelines, specifications, setup, operation, tuning, and troubleshooting for the CDHD2 drive.
This manual covers all aspects of the CDHD2 servo drive, including safety and standards, detailed specifications, and step‑by‑step instructions for configuring the drive, motor, and application settings. It also explains operation modes, HMI panel usage, functional safety (STO), and provides comprehensive troubleshooting information.
Additional sections describe firmware updates, recommended accessories such as line filters and regeneration resistors, and include wiring diagrams for both medium‑ and low‑voltage configurations. The document is intended for engineers and technicians installing and maintaining the CDHD2 drive. This manual is written in Chinese.
| Mounting screw size | M4 or UN#8 |
|---|---|
| Fan presence (CDHD2‑1D5 model) | No fan |
Firmware can be updated via a serial connection or directly over EtherCAT as described in the firmware update section.
The packaging contains only the CDHD2 drive; accessories are listed separately.
The manual lists recommended line filter manufacturers and part numbers, such as LCR and Schaffner models.
