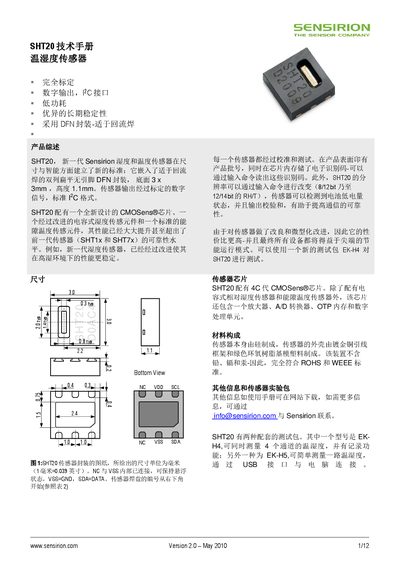

Technical datasheet for the Sensirion SHT20 digital humidity and temperature sensor with I²C interface.
The SHT20 is a digital humidity and temperature sensor from Sensirion that offers a fully calibrated output via a standard I²C interface. It is packaged in a 3 × 3 mm DFN package suitable for reflow soldering and complies with RoHS and WEEE standards. The sensor integrates a CMOSens® chip, a capacitive humidity element, a band‑gap temperature element, an ADC, an OTP memory and a digital processing unit.
The document provides detailed electrical characteristics, pin definitions, recommended PCB layout, storage and handling guidelines, as well as the full command set for I²C communication. It also includes environmental stability test results, packaging information, and regulatory compliance notes for designers integrating the SHT20 into their products. This manual is written in Chinese.
| Supply voltage (VDD) | 2.1 V – 3.6 V |
|---|---|
| Sleep mode current | 0.15 µA – 0.4 µA |
| Measurement mode current | 200 µA – 330 µA |
| Power dissipation (sleep) | 0.5 µW – 1.2 µW |
| Humidity resolution | 12 bit (typical 0.04 %RH) |
| Temperature resolution | 14 bit (typical 0.01 °C) |
| Humidity accuracy (typical) | ±3 %RH |
| Temperature accuracy (typical) | ±0.3 °C |
| Operating temperature range | -40 °C – 125 °C |
| Package dimensions | 3 × 3 mm, height 1.1 mm |
All SHT20 sensors are set to the same I²C address as defined in the datasheet.
Send the soft‑reset command (0xFE) over I²C; the sensor reinitialises within 15 ms.
Store the sensor in its original sealed ESD bag at 10 °C – 50 °C and 20 % – 60 %RH (unsealed sensors at 20 % – 60 %RH).
A typical pull‑up resistor of 10 kΩ is recommended for SDA and SCL.
