SHT21 is the new generation of Sensiron humidity and temperature sensor, with very small packaging size, it can be used for reflow soldering. The sensor output is a calibrated and linear processed PWM signal.
The SHT21S is a digital humidity and temperature sensor in a 3 × 3 mm DFN package. It uses Sensirion's CMOSens® technology and offers high accuracy, low power consumption and long‑term stability. The sensor can be interfaced via I²C (SDA/SCL) or PWM (SDM) and is suitable for a wide range of industrial and consumer applications.

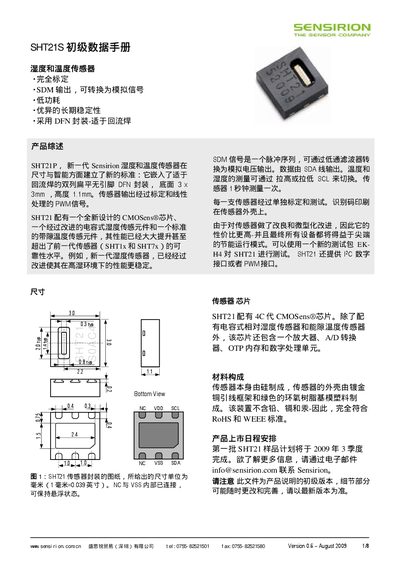

The datasheet provides detailed electrical parameters such as supply voltage, current consumption and resolution, as well as mechanical dimensions, handling instructions and ordering information. It also includes environmental specifications like operating temperature and humidity ranges. This manual is written in Chinese.
| Supply voltage (VDD) | 2.1 V – 3.6 V |
|---|---|
| Current consumption (IDD) | 160 µA |
| Humidity resolution | 10 bit |
| Temperature resolution | 12 bit |
| Operating temperature range | -40 °C – 125 °C |
| Humidity range | 0 % – 100 %RH |
The sensor operates from 2.1 V to 3.6 V.
