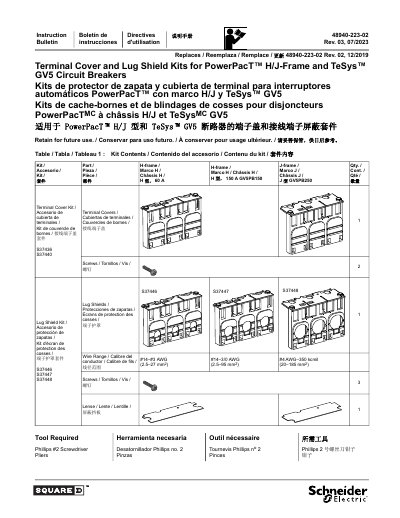

Installation instructions for terminal cover and lug shield kits compatible with PowerPacT H/J-Frame and TeSys GV5 circuit breakers.
This document provides installation instructions for Terminal Cover and Lug Shield Kits designed for PowerPacT™ H/J-Frame and TeSys™ GV5 circuit breakers. It details the contents of the kits, including specific part numbers for different frame sizes and current ratings, and lists the required tools for installation. This manual is written in Spanish.
| Torque for screws | 10.6 lb-in. (1.2 N•m) |
|---|---|
| Wire range for S37446 | #14–#3 AWG (2.5–27 mm2) |
| Wire range for S37447 | #14–3/0 AWG (2.5–95 mm2) |
| Wire range for S37448 | #4 AWG–350 kcmil (20–185 mm2) |
A Phillips #2 Screwdriver and Pliers are required.
Kits S37446, S37447, and S37448 are used with control wires.
