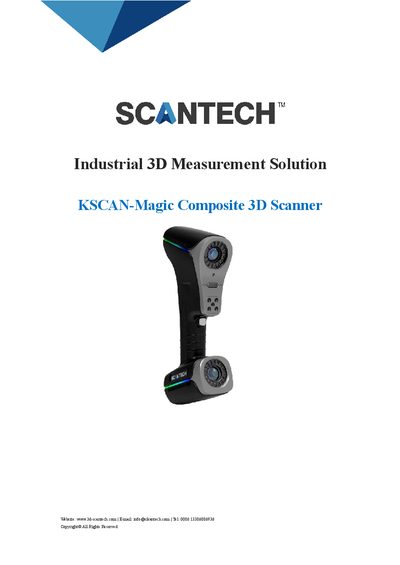

Technical proposal for the ScanTech KSCAN‑Magic handheld 3D scanner, detailing features, specifications and applications.
The KSCAN‑Magic series is a handheld composite 3D scanner that combines infrared and blue laser technologies with five standard scanning modes, including ultra‑fast and deep‑hole scanning. It offers high accuracy, a large scanning area, and an optional built‑in photogrammetry system for complex surface measurement.
The document provides a company overview, product specifications, configuration options, customer support details, and example application cases across automotive, aerospace, power generation, and more.
| Scanning area | 1440 mm × 860 mm |
|---|---|
| Accuracy | 0.020 mm |
| Resolution | 0.010 mm |
| Scanning rate | 1,350,000 measurements/s |
| Laser lines total | 41 |
| Depth of field | 925 mm |
| Interface mode | USB 3.0 |
| Operating temperature range | -10~40°C |
| Laser class | CLASS II (eye‑safe) |
The scanner provides an accuracy of 0.020 mm.
The device uses a USB 3.0 interface.
