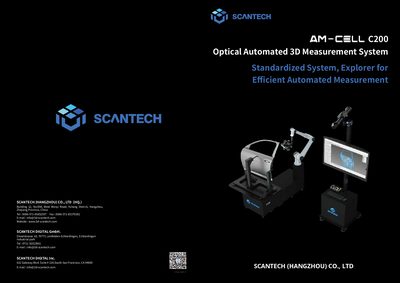

The Scantech AM-CELL C200 is an all‑in‑one optical automated 3D measurement system offering modular design, active safety and high‑precision scanning up to…
The AM‑CELL C200 provides a modular, plug‑and‑play solution for measuring medium‑sized parts on shop floors, CMM rooms, and in educational settings. Its active safety system with ten‑grade collision detection allows operators to work directly alongside the robot without a physical fence.
Technical specifications include a 2.5 kW control system, 200 kg payload, maximum object size of Ø1500 mm, and measurement accuracy up to 0.025 mm. The system can capture up to 2.6 million measurements per second over a scanning area of 500 mm × 600 mm, using a Class II eye‑safe laser.
| Maximum Object Size | Ø1500 mm |
|---|---|
| Object Payload | 200 kg |
| Resolution | 0.044 mm + 0.012 mm/m |
It can measure objects up to a diameter of 1500 mm.
The system supports an object payload of 200 kg.
