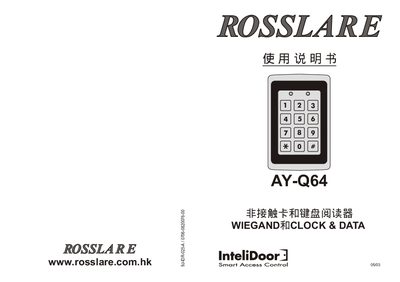

Installation, wiring, programming and operation instructions for the Rosslare AY‑Q64 non‑contact card and keyboard reader.
The AY‑Q64 is a programmable non‑contact card and keyboard reader designed for access‑control systems. It supports multiple card formats, can output 26‑Bit Wiegand or Clock & Data, and includes anti‑tamper features, LEDs and a buzzer.
This manual covers the device’s specifications, installation steps, wiring diagram, programming procedures (including entering/exiting programming mode, setting transmission formats, changing passwords and area codes), troubleshooting and technical support information. This manual is written in Chinese.
| Operating humidity | 0‑95 % (non‑condensing) |
|---|---|
| Dimensions (L×W×H) | 120 mm × 76 mm × 27 mm |
| Weight | 0.9 lb (410 g) |
| Power supply voltage | 5 V to 16 V DC (regulated) |
| Static current consumption | 55 mA |
| Read distance | 2.5 in (65 mm) |
| Supported card formats | All 26‑Bit EM cards (125 kHz ASK) |
| Programmable transmission formats | Clock & Data, 26‑Bit Wiegand |
| LED indicators | Two tri‑color LEDs |
| Default programming password | 1234 |
The factory‑default programming password is 1234.
It requires a regulated 5 V to 16 V DC power source.
