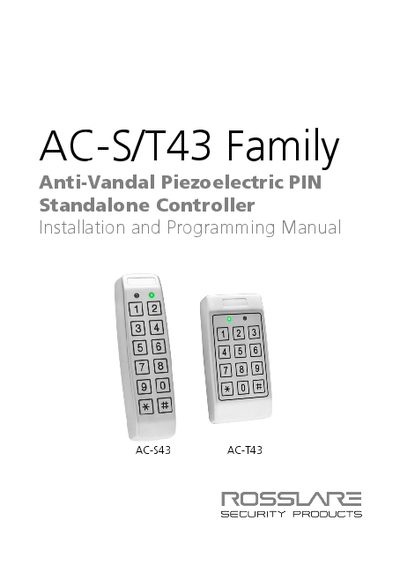

Installation, wiring, operation, programming instructions and technical specifications for the Rosslare AC‑S/T43 anti‑vandal piezoelectric PIN standalone…
The AC‑S/T43 family are waterproof, anti‑vandal piezoelectric PIN standalone controllers designed for indoor and outdoor door access. They support up to 500 users, three user levels and three operating modes, and include auxiliary inputs, outputs, and optional sounder features.
This manual covers controller types, key features, box contents, technical specifications, mounting and wiring, operation modes, programming procedures, warranty information and contact details. It provides step‑by‑step guidance for installation, configuration and maintenance of the AC‑S/T43 controllers.
| Input Voltage | 12–24 VDC, 16 VAC |
|---|---|
| Maximum Input Current (12 VDC) | 80 mA (AC‑S43), 75 mA (AC‑T43) |
| Standby Input Current (12 VDC) | 33 mA (AC‑S43), 15 mA (AC‑T43) |
| Maximum Relay Current | 5 A |
| LED Indicators | Two tri‑colored LEDs (Mode and Door) |
| Operating Temperature Range | -32 °C to 63 °C |
| Operating Humidity Range | 0 % to 95 % (non‑condensing) |
| Size (H × W × D) | 149 mm × 42 mm × 27 mm |
| Weight | 413 g (AC‑S43), 388 g (AC‑T43) |
The controller can accept up to 500 users.
It operates from 12–24 VDC or 16 VAC.
The controller is rated for -32 °C to 63 °C.
