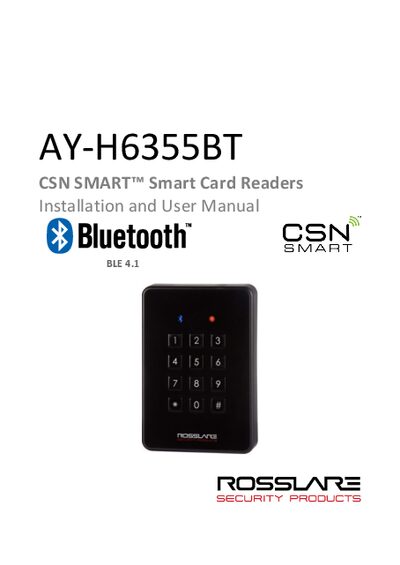

The Rosslare AY-H6355BT smart card reader manual provides installation steps, wiring diagrams, programming instructions, and technical specifications.
The AY-H6355BT is a CSN SMART™ smart card reader from Rosslare that supports PIN keypad entry, contactless 13.56 MHz cards, NFC, and BLE ID reading. It is IP65‑rated for indoor and outdoor use and offers OSDP and Wiegand outputs.
This manual guides installers through mounting, wiring, and configuring the reader, explains programming modes and credential selection, and lists the full technical specifications, regulatory declarations, and warranty information.
| Power Supply Type | Regulated |
|---|---|
| Operating Voltage Range | 8 to 16 VDC |
| Standby Current @ 12 V | 120 mA |
| Maximum Current @ 12 V | 220 mA |
| Contactless Read Range (13.56 MHz/NFC) | Up to 7 cm (2.8 in.) |
| BLE Range | Up to 10 m (32 ft) open air |
| Maximum Wiegand Cable Distance | 150 m (500 ft) with 18‑AWG cable |
| Operating Temperature Range | -35 °C to 66 °C (-31 °F to 150 °F) |
| Dimensions (H × W × D) | 110.7 × 75.0 × 18.2 mm (4.4 × 3.0 × 0.7 in.) |
| Weight | 190 g (6.7 oz) |
The reader can communicate over Wiegand up to 150 m (500 ft) when using 18‑AWG cable.
It operates from –35 °C to 66 °C (‑31 °F to 150 °F).
BLE 4.1 can reach up to 10 m (32 ft) in open air.
The NFC/13.56 MHz read range is up to 7 cm (2.8 in.).
