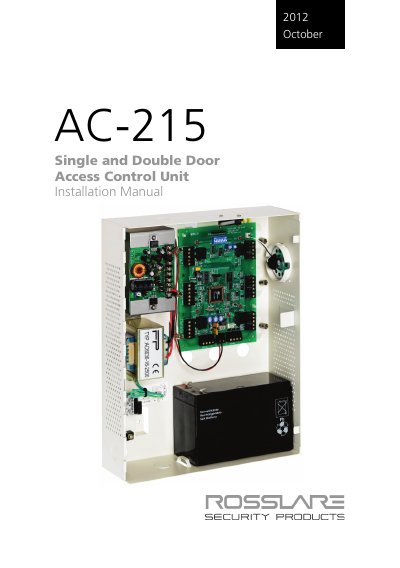

Installation guide for the Rosslare AC-215 single and double door access control unit, covering wiring, configuration, and specifications.
The AC-215 is a single or double door access control unit designed for secure entry management. It can operate as a standalone controller for one or two doors, or be networked to control many doors via the AxTrax™ AS‑525 software.
The manual provides detailed instructions on hardware installation, wiring diagrams, DIP switch settings, communication interfaces (RS‑232, RS‑485, LAN), and power supply requirements. Safety notices, warranty information, and a list of compatible proximity readers are also included.
| Operating Voltage | 12 VDC 0.5 A |
|---|---|
| Standby Input Current | 125 mA |
| Maximum Input Current | 325 mA |
| Relay Output Current | 5 A |
| General Input Voltage | 5 VDC (max) |
| Enclosure Dimensions (L×W×D) | 264 × 334 × 84.5 mm |
| Weight | 3.77 kg |
| Operating Temperature | 0 °C to 49 °C |
| Power Supply Input | 16 VAC, 2.5 A |
The main unit operates at 12 VDC with a current draw of 0.5 A.
A single AC-215 controller can manage one or two doors when used as a standalone unit.
The relay outputs are rated for 5 A, with both normally‑open and normally‑closed options.
Rosslare offers a two‑year limited warranty for the AC‑215 unit.
