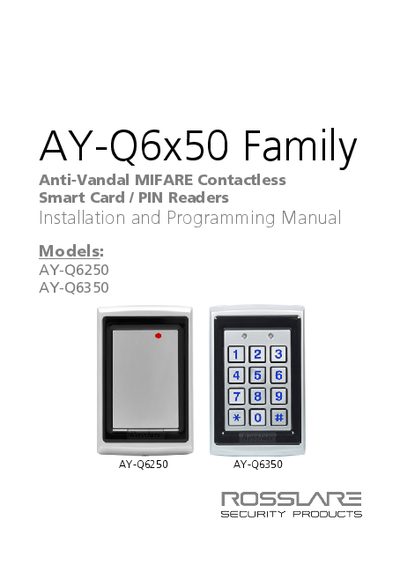

Installation and programming guide for Rosslare AY‑Q6250 and AY‑Q6350 anti‑vandal MIFARE contactless smart card/PIN readers.
This manual provides complete installation instructions, wiring details, and programming procedures for the Rosslare AY‑Q6x50 family of anti‑vandal MIFARE contactless smart card and PIN readers. It covers mounting, power requirements, and configuration of card and keypad transmission formats.
The document also includes technical specifications, safety notices, and warranty information, helping installers and users set up the readers for indoor or outdoor use while ensuring compliance with ISO14443A‑3 standards.
| Power Supply Type | Linear type (recommended) |
|---|---|
| Input Voltage | 5–16 VDC |
| Absolute Maximum Voltage (non‑operating) | 18 VDC |
| Standby Current (AY‑Q6250) | 60 mA |
| Read Current (AY‑Q6250) | 100 mA |
| Standby Current (AY‑Q6350) | 115 mA |
| Read Current (AY‑Q6350) | 160 mA |
| Maximum Controller Cable Distance | 150 m (500 ft) using 18‑AWG cable |
| Maximum Proximity Read Range | 30 mm (1.2 in.) |
| Operating Frequency | 13.56 MHz |
| Operating Temperature Range | -31°C to 63°C (-25°F to 145°F) |
| Operating Humidity Range | 0 to 95% (non‑condensing) |
| Dimensions (H×W×D) | 120 × 76 × 27 mm (4.7 × 3.0 × 1.1 in.) |
| Weight | 500 g (1.1 lb) |
A linear type power supply is recommended.
The readers operate from 5 VDC to 16 VDC.
Up to 150 m (500 ft) when using an 18‑AWG cable.
Approximately 30 mm (1.2 in.) under normal conditions.
