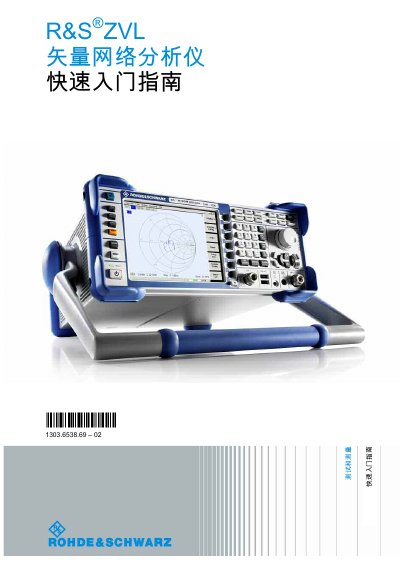

Quick start guide with safety instructions, software package info and basic operation overview for the R&S ZVL3 and ZVL6 vector network analyzers.
This guide introduces the R&S ZVL series vector network analyzers, covering safety requirements, firmware open‑source software packages and the basic functions of the instruments. It lists the two models covered – ZVL3 (up to 3 GHz) and ZVL6 (up to 6 GHz) – and provides the necessary information to get the devices up and running.
The document includes a front‑panel overview, description of key front‑panel keys, screen‑saver settings, optional measurement extensions, and instructions for connecting accessories and performing basic measurements. It also contains regulatory and disposal information required for safe use in industrial or laboratory environments. This manual is written in Chinese.
| Frequency range (ZVL3) | up to 3 GHz |
|---|---|
| Frequency range (ZVL6) | up to 6 GHz |
| Weight | >18 kg |
The product is designed and tested according to the EC Certificate of Conformity.
