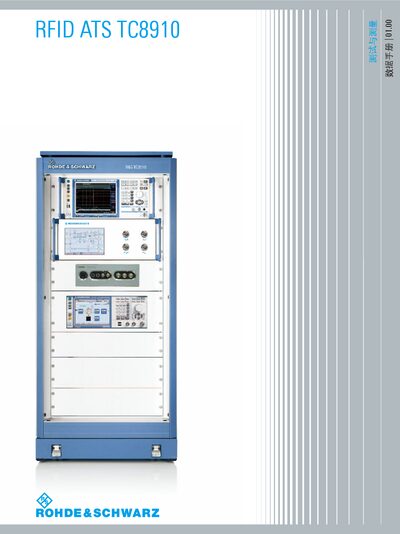

The Rohde & Schwarz TC8910 RFID ATS datasheet describes test environment, system specifications, and configuration options for UHF RFID testing.
The TC8910 RFID ATS provides a complete test solution for UHF‑band RFID devices, covering RF, protocol, and performance consistency tests. It allows users to record test data, create custom test plans, monitor progress in real time, and generate test reports, improving accuracy and efficiency.
The system operates in a temperature‑controlled anechoic chamber (20‑30 °C) after a 30‑minute warm‑up. It supports a frequency range of 860‑960 MHz (UHF), 13.56 MHz (HF) and 2.4 GHz (ISM), with input/output impedances of 50 Ω and maximum signals of 33 dBm (input) and 20 dBm (reader) / 0 dBm (tag). Required PC specifications are a P4‑2.4 GHz processor, ≥80 GB disk space, and ≥1 GB RAM. This manual is written in Chinese.
| UHF frequency range | 860 MHz ~ 960 MHz |
|---|---|
| HF frequency range | 13.56 MHz |
| ISM frequency range | 2.4 GHz |
| Input impedance | 50 Ω |
| Output impedance | 50 Ω |
| Maximum input signal | 33 dBm |
| Maximum output signal (Reader) | 20 dBm |
| Maximum output signal (Tag) | 0 dBm |
| Supported test types | RF test / Protocol test / Performance test |
| Operating temperature | 20 °C ~ 30 °C |
| Pre‑heat time | 30 min |
| PC requirements | P4‑2.4 GHz+, 80 GB disk, 1 GB RAM |
It supports 860 MHz to 960 MHz in the UHF band.
A PC with a P4‑2.4 GHz processor or higher, at least 80 GB of disk space, and 1 GB of RAM is required.
The system must be powered on for a 30‑minute warm‑up period.
