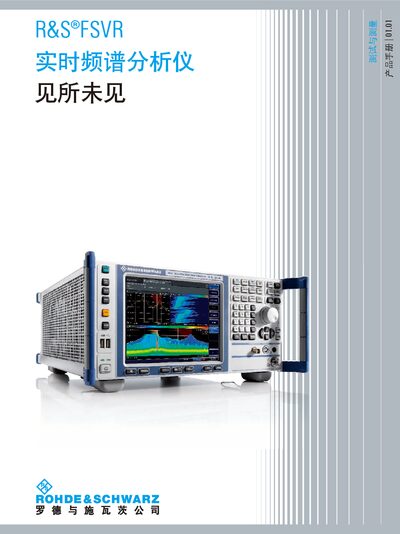

The Rohde & Schwarz FSVR series real‑time spectrum analyzers (FSVR7, FSVR13, FSVR30) product leaflet provides key technical specifications, ordering…
The FSVR family offers real‑time spectrum analysis from 10 Hz up to 30 GHz, with a real‑time bandwidth of 100 Hz‑40 MHz and high‑speed data acquisition (128 Msample/s, 16‑bit ADC). It is designed for fast, accurate measurements in wireless, radar, and communications testing.
The leaflet lists the main technical parameters, such as frequency range, resolution bandwidth, dynamic range, and update rates, together with ordering codes and a range of optional hardware and software accessories that can be added to tailor the instrument to specific applications. This manual is written in Chinese.
| Frequency range (FSVR7) | 10 Hz – 7 GHz |
|---|---|
| Frequency range (FSVR13) | 10 Hz – 13.6 GHz |
| Frequency range (FSVR30) | 10 Hz – 30 GHz |
| Real‑time bandwidth | 100 Hz – 40 MHz |
| ADC sampling rate / resolution | 128 Msample/s, 16 bit |
| Spectrum update rate | 10 000 updates/s |
| Screen update speed | 30 frames/s |
| Dynamic range | 0 dB to –80 dB |
| Average noise level (1 GHz) | –152 dBm (1 Hz) |
The FSVR7 covers frequencies from 10 Hz up to 7 GHz.
It can update the spectrum up to 10 000 times per second.
