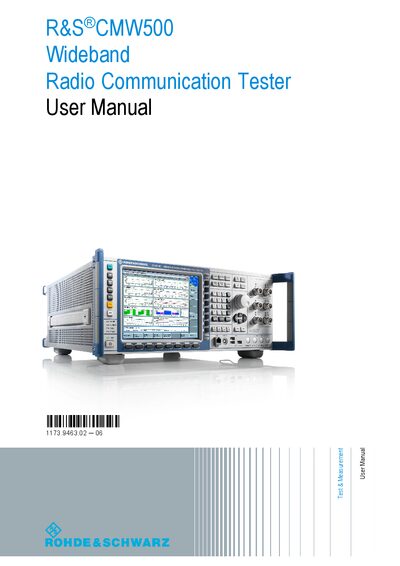

This user manual is for the R&S®CMW500 Wideband Radio Communication Tester. The manual describes the base software, common features of the firmware applications, and basic principles for manual operation and remote control.
This manual describes how to set up, configure, and operate the R&S CMW500 Wideband Radio Communication Tester. It includes safety instructions, unpacking, instrument tour, and basic operation steps for generating and measuring RF signals.
The document also covers remote control options (LAN, USB, GPIB), detailed command reference for the base software, system overview of generators and measurements, and annexes with connector specifications and interface details.
| IP protection | 2X |
|---|---|
| Maximum operating altitude | 2000 m above sea level |
| Maximum transport altitude | 4500 m above sea level |
| USB port maximum current | 500 mA |
| Maximum USB cable length | 1 m |
Users must read and comply with all safety instructions, operate the instrument indoors with the housing floor down, and follow voltage and altitude limits.
The instrument supports remote control via LAN, USB, and GPIB interfaces, with specific setup procedures for each.
A USB type‑B connector is used when the instrument acts as a device for remote control.
