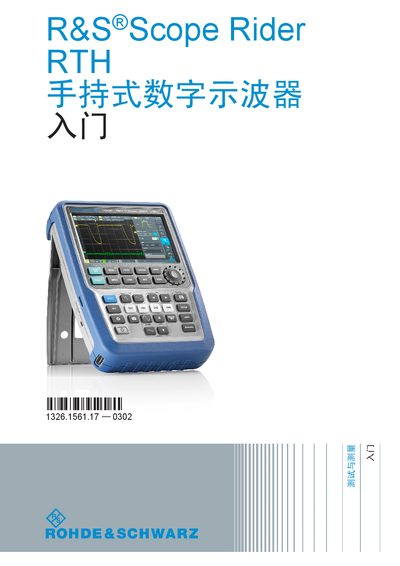

Rohde & Schwarz RTH1002/1004 Scope Rider RTH Handheld Digital Oscilloscope User Manual

About this manual

This document serves as a user guide for the R&S®Scope Rider RTH series, specifically the RTH1002 and RTH1004 models. It provides essential safety instructions and operational guidelines for using these handheld digital oscilloscopes in industrial, laboratory, or field measurement environments. The text emphasizes the importance of adhering to safety standards to prevent injury or equipment damage. This manual is written in Chinese.

What's inside

• Safety Instructions
• Operating Conditions
• Electrical Safety
• Handling and Transport
• Warning Labels
• Environmental Requirements

Frequently asked questions

What are the maximum altitude limits for operating and transporting this oscilloscope?

The device can be operated at a maximum altitude of 2000 m and transported up to 4500 m.

What specific safety measures are required when measuring circuits with a voltage greater than 30V RMS?

You must use appropriate protection measures such as measurement tools, fusing, current limiting, electrical isolation, or insulation.

What is the maximum current capacity for the grid fuse if using a large capacity fuse?

The maximum current capacity is 16A, but you must consult Rohde & Schwarz if using a large capacity fuse.
