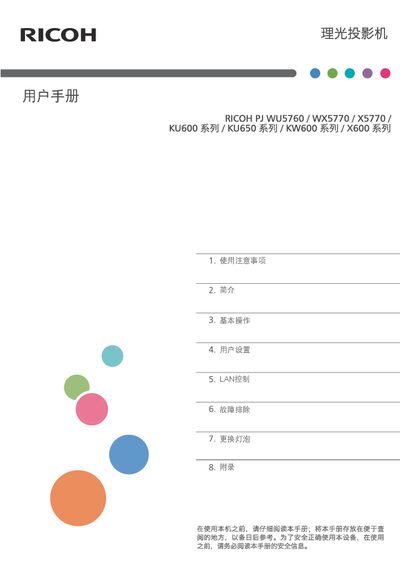

This Ricoh projector user manual covers safety warnings, setup, operation, LAN control, lamp replacement, and specifications for the PJ…
The manual provides detailed safety instructions, installation steps, and basic operating procedures for Ricoh's PJ X5770, WX5770, WU5760, X600, KW600, KU600 and KU650 projectors. It includes sections on user settings, image adjustment, audio control, and troubleshooting.
Additional chapters describe LAN and web‑based control, Crestron integration, firmware updates, and a full list of specifications such as lamp type, throw ratio, dimensions, and power consumption. The appendix contains lamp‑replacement instructions and regulatory information. This manual is written in Chinese.
| DLP chip | 0.55" DMD XGA (PJ X5770), 0.65" DMD WXGA (WX5770), 0.67" DMD WUXGA (WU5760) |
|---|---|
| Lamp type | 365 W mercury‑gas lamp |
| Projection distance (focus range) | 1.3 – 11.2 m |
| Throw ratio | 1.84 – 2.94 |
| Dimensions (W×H×D) | 368 × 294 × 120 mm (without protrusions) |
| Weight | ≈ 4.7 kg |
| I/O interfaces | HDMI 3/MHL, HDMI 2/MHL, HDMI 1, PC inputs, S‑Video, RCA audio, USB‑A, LAN, HDBaseT (selected models) |
| Lamp life | Normal mode 3000 h, ECO mode 4000 h |
| Noise level (typical) | Full‑screen 38 dB(A), Eco 33 dB(A) |
| Power consumption | ECO mode 354 W (typical) / 399 W (max) at 110 V; Full‑screen mode 448 W (typical) / 503 W (max) at 110 V |
Turn off the power, wait at least one hour for the unit to cool, unplug the power cord, then follow the lamp‑replacement steps in the manual.
The projector provides HDMI 3/MHL, HDMI 2/MHL, HDMI 1, PC inputs, S‑Video, RCA audio inputs, USB‑A, LAN, and HDBaseT (only on WU5760/KU600/KU650 models).
The lamp lasts about 3000 hours in normal mode and about 4000 hours in ECO mode.
