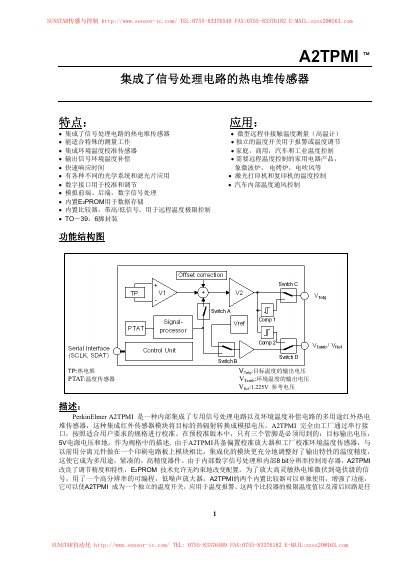

PerkinElmer A2TPMI Integrated Signal Processing Thermopile Sensor Datasheet

About this manual

The PerkinElmer A2TPMI is an infrared temperature sensor that integrates a dedicated signal processing circuit and an environmental temperature compensation circuit. It converts target thermal radiation into a modeled voltage output, designed for applications in industrial control, automotive systems, medical devices, and home appliances. The device features high precision, low power consumption, and a wide operating temperature range. This manual is written in Chinese.

What's inside

• Features
• Applications
• Functional Structure
• Part Numbering System
• Electrical Characteristics
• Thermopile Characteristics
• Environmental Temperature Sensor Characteristics
• Optical System Characteristics
• Filter Characteristics
• Control Unit

Frequently asked questions

What is the operating temperature range for the PerkinElmer A2TPMI sensor?

The device operates within a temperature range of -25°C to 100°C.

How long does it take for the sensor to respond after a change in temperature?

The response time ranges from 90 ms to 150 ms.
