Datasheet for the Panasonic 416MIP504 IPD, a G3‑pin MOS IC with five integrated protection functions and electrical specifications.

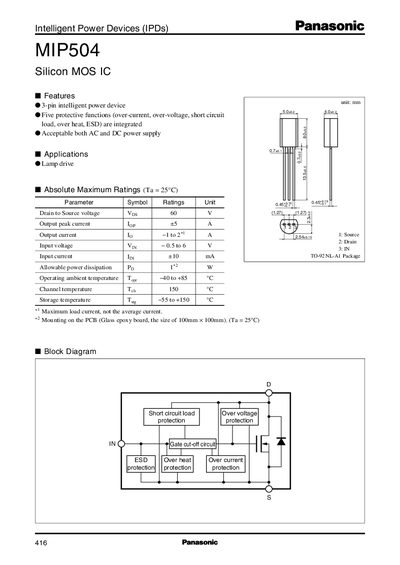

The Panasonic 416MIP504 Intelligent Power Device (IPD) is a silicon MOS IC in a TO‑92 NL‑A1 package. It integrates five protection functions—over‑current, over‑voltage, short‑circuit load, over‑heat, and ESD—and can be used with both AC and DC supplies in applications such as lamp drivers.
The datasheet provides absolute maximum ratings, electrical characteristics, and block diagrams. It also includes usage notes, export restrictions, and liability statements to guide designers in selecting and applying the device safely.
The device integrates over‑current, over‑voltage, short‑circuit load, over‑heat, and ESD protection.
