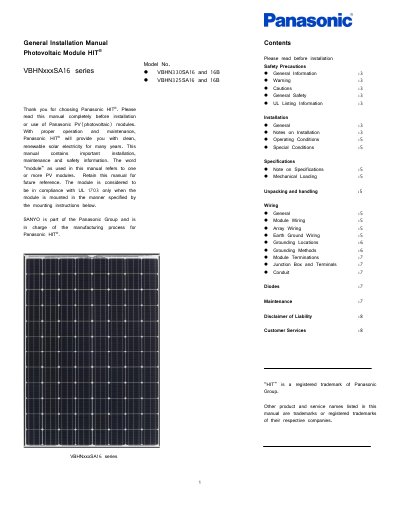

Installation guide with safety, wiring, grounding and mounting instructions for Panasonic HIT VBHNxxxSA16 photovoltaic modules.
This manual provides complete installation instructions for Panasonic HIT VBHNxxxSA16 series photovoltaic modules. It covers safety precautions, required clearances, mechanical loading limits, and detailed wiring and grounding procedures to ensure compliance with UL 1703 and local electrical codes.
The guide also includes specifications, handling recommendations, and maintenance notes, along with diagrams for clamp types, grounding methods, and module terminations. All work must be performed by qualified licensed professionals.
| Mechanical Loading Capacity | 2,400 N/m² (50 PSF) static |
|---|---|
| Electrical Tolerance | -5 % to +10 % |
A clearance of more than 4 inches is required to allow cooling air and moisture dissipation.
The recommended torque is 2.3 N·m (20 in‑lb).
Up to seven modules should be wired in series; eight may be used only if local temperature conditions allow.
Stranded or solid copper single‑conductor sunlight‑resistant cable rated for outdoor use (e.g., UF or USE).
