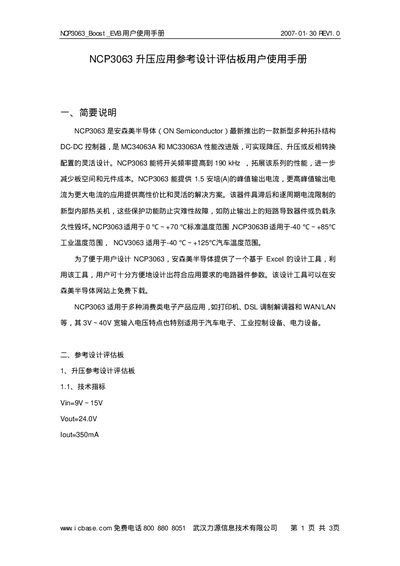

ON Semiconductor NCP3063 Boost EVB User Manual

This user manual provides technical specifications, schematic diagrams, and component lists for the NCP3063 Boost Evaluation Board.

Brand: ON Semiconductor
Category: Power Management
Document type: User Manual
Language: Chinese
Pages: 3
File format: PDF
File size: 57 KB
Published: 16 December, 2011
Updated: 16 October, 2026
MD5 checksum: B33A5A3902014FAC74DF08B795419278
PDF: ON Semiconductor NCP3063 Boost EVB User Manual PDF

About this manual

This document is a user manual for the NCP3063 Boost Evaluation Board, serving as a reference design for the NCP3063 DC-DC controller. The NCP3063 is described as a new multi-mode DC-DC controller from ON Semiconductor, offering improved performance over previous models like the MC34063A and MC33063A. It supports boost, buck, or inverting configurations and features an internal current limit to prevent catastrophic failures. This manual is written in Chinese.

What's inside

Product Description
Reference Design Board
Boost Reference Design Board
Technical Specifications
Schematic Diagram
Component List
PCB Layout
Packaging List

Specifications

Input Voltage (Vin)	9V ~ 15V
Output Voltage (Vout)	24.0V
Output Current (Iout)	350mA
Switching Frequency	190 kHz
Peak Output Current	1.5A

Frequently asked questions

What is the operating temperature range for the NCP3063B?

The NCP3063B is designed for an industrial temperature range of -40°C to +85°C.

What is the operating temperature range for the NCV3063?

The NCV3063 is designed for an automotive temperature range of -40°C to +125°C.

Download PDF (57 KB)
