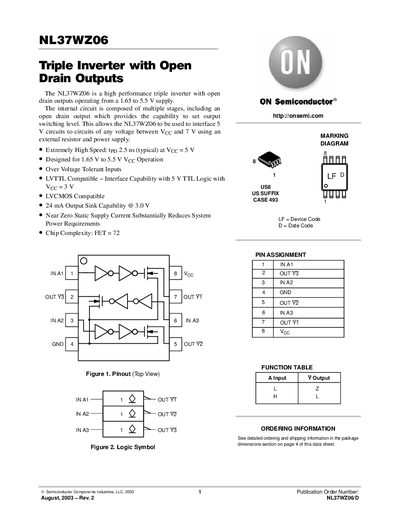

The NL37WZ06 is a high performance triple inverter with open drain outputs operating from a 1.65 to 5.5 V supply. The internal circuit is composed of multiple stages, including an open drain output which provides the capability to set output switching level. This allows the NL37WZ06 to be used to interface 5 V circuits to circuits of any voltage between VCC and 7 V using an external resistor and power supply.
The NL37WZ06 triple inverter provides three independent open‑drain outputs that can interface 5 V logic to voltages between VCC and 7 V using an external resistor. It features extremely high speed (tpp ≈ 2.5 ns) and low static supply current, making it suitable for low‑power applications.
The datasheet includes maximum ratings, recommended operating conditions, DC and AC electrical characteristics, capacitance data, ordering information, and detailed mechanical dimensions for tape and reel packaging.
| Supply Voltage Range (Voc) | 1.65 V – 5.5 V |
|---|---|
| Input Voltage Range (VI) | 0 V – 5.5 V |
| Output Sink Current | ±50 mA |
| Supply Current per Supply Pin | ≤ 100 mA |
| Storage Temperature Range | -65 °C – +150 °C |
| Propagation Delay (typical) | 2.5 ns |
| Input Capacitance (Cin) | 25 pF |
| Output Capacitance (Cout) | 4.0 pF |
| Power Dissipation (still air, 85 °C) | 250 mW |
The device operates with a supply voltage (Voc) from 1.65 V to 5.5 V.
Each output can sink up to ±50 mA.
Typical propagation delay is about 2.5 ns at a 5 V output voltage.
The device can be stored from –65 °C up to +150 °C.
