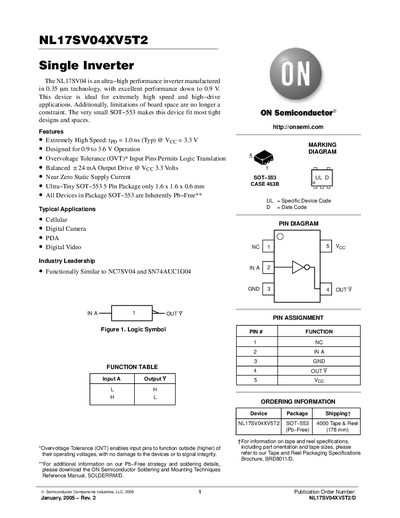

The NL17SV04XV5T2 is a single inverter manufactured by ON Semiconductor. It has excellent performance down to 0.9 V, and is ideal for extremely high speed and high-drive applications. Its extremely small SOT-553 package makes it fit most tight designs and spaces.
The NL17SV04XV5T2 is an ultra‑high performance inverter built in 0.35 µm technology, designed for 0.9 V to 3.6 V operation and capable of delivering up to 24 mA output drive. It is offered in an ultra‑tiny 5‑lead SOT‑553 package (1.6 × 1.6 × 0.6 mm) suitable for space‑constrained designs.
The datasheet provides maximum ratings, recommended operating conditions, DC and AC characteristics, package dimensions, and ordering information. All devices are Pb‑free and comply with relevant safety and reliability standards.
| Supply Voltage (Voc) range | -0.5 V to +4.6 V |
|---|---|
| Input Voltage (VI) range | -0.5 V to +46 V |
| Supply Current per Supply Pin | +50 mA |
| Storage Temperature Range | -65 °C to +150 °C |
| Power Dissipation (still air, 85 °C) | 250 mW |
| Package type | SOT‑553 5‑lead |
It is supplied in a 5‑lead SOT‑553 package (1.6 × 1.6 × 0.6 mm).
The device can tolerate a supply voltage from –0.5 V up to +4.6 V.
Yes, all devices in the SOT‑553 package are inherently Pb‑free.
The device provides a balanced +24 mA output drive at a 3.3 V supply.
