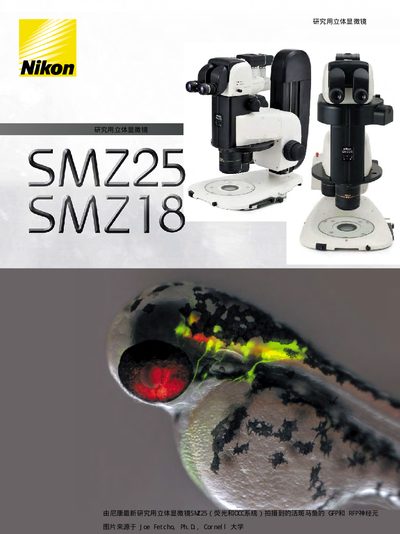

The Nikon SMZ25 manual provides specifications, optical performance data, accessory options, and software integration details for the 25:1 zoom microscope.
This manual describes the Nikon SMZ25 25:1 zoom microscope, covering its optical specifications, illumination options, and compatible accessories. It includes detailed information on magnification ranges, objective lenses, LED illumination modules, and the NIS‑Elements software used for image acquisition and analysis.
The document also outlines recommended usage procedures, maintenance tips, and safety precautions. Tables list the available objective lenses, SHR Plan Apo configurations, and mechanical accessories such as trinocular tubes and tilting stages, helping users configure the microscope for a variety of biological and scientific applications.
| Magnification range | 0.63× – 15.75× (25:1 zoom) |
|---|---|
| Maximum magnification | 315× |
| Field of view (F.O.V.) for 3.15× magnification | 3.15 mm |
The SMZ25 provides a 25:1 zoom range from 0.63× up to 15.75×, with a maximum magnification of 315×.
Nikon’s NIS‑Elements software is used for image capture and analysis with the SMZ25 microscope.
The manual lists LED DIA modules as the illumination source for the SMZ25.
