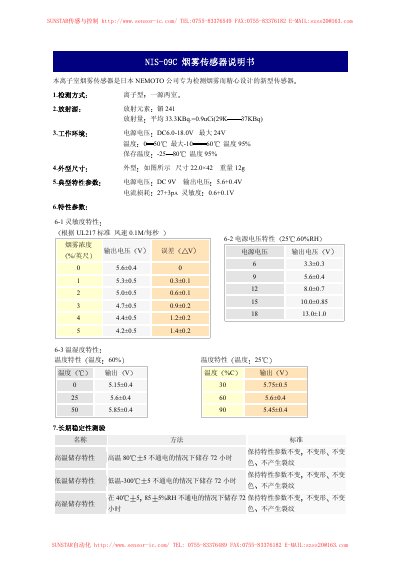

The NEMOTO NIS-09C smoke sensor manual provides specifications, operating instructions, and test procedures for the ion‑chamber smoke detector.
The NIS-09C is an ion‑type smoke sensor with a one‑source two‑chamber design, using a 241Am radiation source. Key electrical specs include a DC 6.0‑18.0 V supply (max 24 V) and a 5.6 ± 0.4 V output, with a current draw of 27 ± 3 µA and sensitivity of 0.6 ± 0.1 V. The sensor measures 22.0 × 42 mm and weighs 12 g.
The manual details environmental limits, long‑term stability tests, vibration and drop tests, and safety precautions such as using a measurement instrument with >10^14 Ω impedance, keeping leads suspended, sealing with epoxy, and shielding to minimise leakage. Contact information for SUNSTAR (the distributor) is also provided. This manual is written in Chinese.
| Power supply voltage | DC6.0‑18.0 V (max 24 V) |
|---|---|
| Output voltage | 5.6 ± 0.4 V |
| Current consumption | 27 ± 3 µA |
| Sensitivity | 0.6 ± 0.1 V |
| Dimensions | 22.0 × 42 mm |
It uses an ion‑type detection method with one radiation source and two chambers.
