This manual provides quick start instructions, installation steps, adjustment procedures, and technical specifications for the Music Tribe 921 VCO Eurorack…

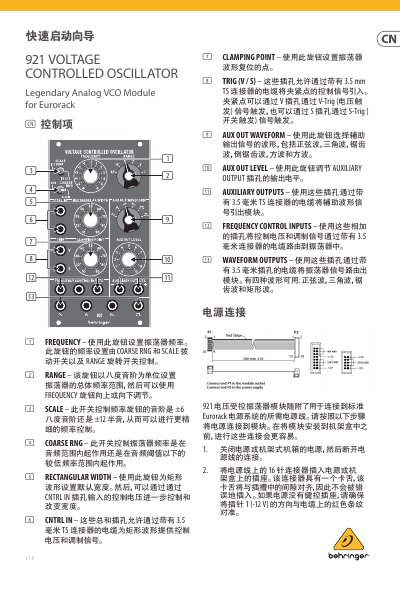

The document serves as a user guide for the Music Tribe 921 Voltage Controlled Oscillator (VCO) module designed for Eurorack systems. It details control descriptions including frequency settings, waveform selection, and auxiliary outputs. The guide also covers power connection instructions and installation steps for mounting the module into a rack case. This manual is written in Chinese.
| Frequency Control Input Impedance | 100 kΩ, unbalanced |
|---|---|
| V-trig Input Impedance | 10 kΩ, unbalanced |
| S-trig Input Impedance | 30 kΩ, unbalanced |
| Auxiliary Output Level | +/-10 dBu |
| Waveform Outputs Impedance | <800 Ω, unbalanced |
| Power Supply Current Consumption | 50 mA (+12 V), 50 mA (-12 V) |
| Module Dimensions | 45 x 71 x 129 mm (1.8 x 2.8 x 5.1") |
| Rack Units | 14 HP |
To calibrate, set the SCALE switch to ±12 SEMI and RANGE to AUDIO, then trim the SCALE trimpot until the output is exactly 640 Hz at -2V input.
The module provides four main waveform outputs: sine, triangle, sawtooth, and square.
The audio range typically covers 1 Hz to 80 kHz, while the sub-audio range covers 0.01 Hz to 800 Hz.
