This user manual covers the installation, controls, and technical specifications for the Music Tribe 140 Dual Envelope/LFO Eurorack module.

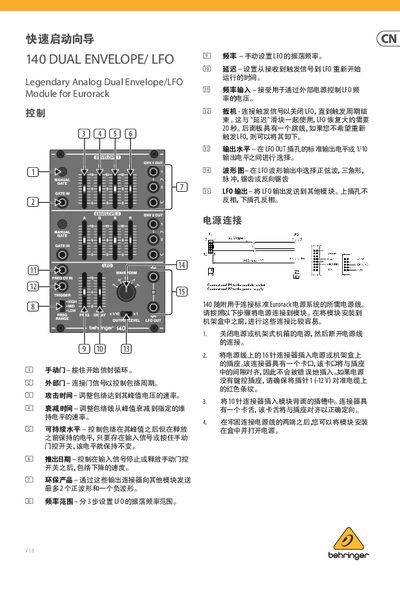

The Music Tribe 140 is a legendary analog dual envelope and LFO module designed for Eurorack systems. This guide provides instructions on connecting the power supply, installing the module into a case, and operating its various controls including manual/external gates, attack/decay/sustain/release parameters, and LFO settings.
| Dimensions | 44 x 81 x 129 mm (1.7 x 3.2 x 5.1 inches) |
|---|---|
| Rack Units | 16 HP |
| Weight | 0.18 kg (0.4 lb) |
| Power Consumption | 40 mA (+12 V), 40 mA (-12 V) |
| Attack Time Range | 1.5 ms - 7.5 s |
| Decay Time Range | 4 ms - 15 s |
| Release Time Range | 4 ms - 15 s |
The module offers three settings: Low (0.05-1.8 Hz), Medium (0.2-9 Hz), and High (0.5-30 Hz).
The waveform selector allows you to choose between Sine, Triangle, Pulse, Sawtooth, and Reverse Sawtooth.
