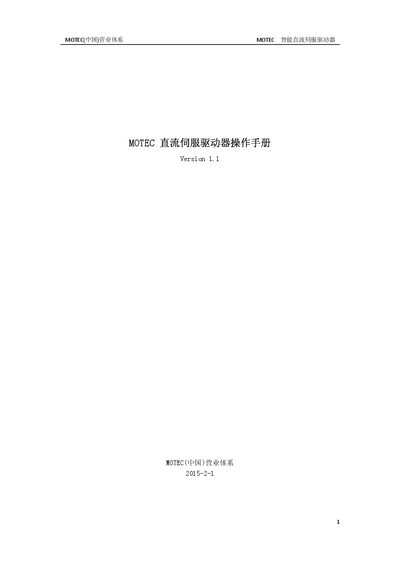

The MOTEC 1MOTEC intelligent DC servo drive operation manual provides safety guidelines, installation, wiring, communication, programming and…
This manual covers safety information, product overview, installation and wiring instructions, and detailed communication options (USB, RS232, RS485, CAN). It also describes the parameter table, motion trajectory planning, and various operating modes such as network, pulse/direction, analog signal, PWM and independent programming.
Additional sections address protection measures, supported communication protocols (MOTECIAN, MODBUS, CANOPEN), the programming function library, alarm codes, fault diagnosis, and contact information for technical support. This manual is written in Chinese.
| Supply Voltage | 18 V‑160 V DC |
|---|---|
| Maximum Continuous Current | 100 A |
| Motor Compatibility | Brushed or brushless servo motors |
| Communication Interfaces | USB, RS232, RS485, CAN bus |
| RS232 Network Capacity | Up to 8 drives |
| RS485 Network Capacity | Up to 31 drives |
| CAN Bus Network Capacity | Up to 110 drives |
| Supported Protocols | MOTECIAN, MODBUS, CANOPEN |
The manual warns that the drive voltage may cause electric shock, live parts must not be touched when powered, and the drive surface can become hot during operation.
The drive can be connected via USB, RS232, RS485 or CAN bus and configured with the motionStudio software running on a Windows PC.
Fault code 5 (FAULT_OVER_VOLTAGE) with alarm code 0x00000010 signals that the main circuit voltage exceeded the allowed range.
