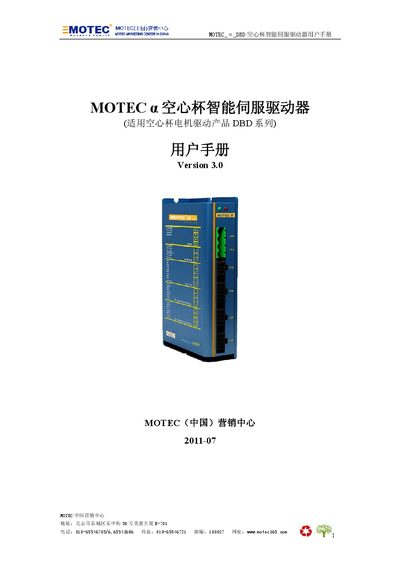

The MOTEC α DBD servo driver user manual provides safety guidelines, installation steps, operation modes, parameter settings, programming instructions, and…
This manual covers safety precautions, installation procedures, and hardware setup for the MOTEC α DBD hollow‑cup servo driver. It explains the required environment, handling of static‑sensitive components, and steps for first power‑on.
The guide also details the various control modes (network command, pulse/direction, analog, PWM, independent), parameter configuration via MotionStudio, programming with MotionLib or command set, and provides a fault‑diagnosis table for troubleshooting. This manual is written in Chinese.
| Input DC voltage | 18 VDC ~ 48 VDC |
|---|---|
| Maximum continuous current | 6 A |
| Digital inputs | 3 |
| Digital outputs (open‑collector) | 2 |
| Analog input range | ±10 V |
The manual warns of electric shock, static‑sensitive components, overheating, moving parts, and advises only qualified personnel perform installation, debugging, and maintenance.
It supports RS232, RS485, and CAN bus for network command mode, allowing multiple drivers to be networked together.
Fault codes and LED indications are listed in the appendix, with a table describing each fault name, LED status, and recommended action.
