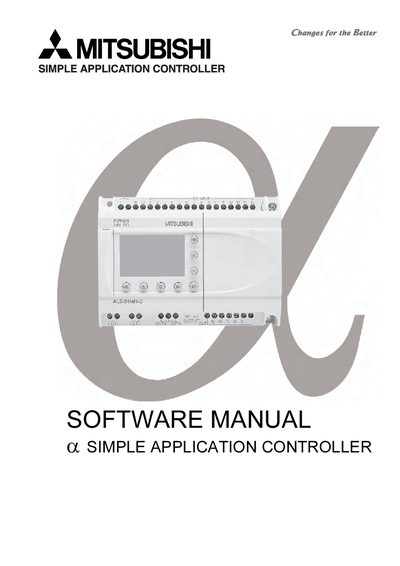

This software manual explains programming and operation of Mitsubishi Electric α/α2 Series Simple Application Controllers using AL‑PCS/WIN‑E.
The manual provides guidance for trained personnel on installing, programming, and safely operating the α/α2 Series Simple Application Controllers. It includes safety guidelines, definitions of symbols, and instructions for using the AL‑PCS/WIN‑E software.
Key topics cover function‑block programming, AS‑interface output configuration, active/passive state control, and references to related hardware and programming manuals. The document also lists other Mitsubishi manuals that complement this guide.
| Function blocks available | 40 total (α series: 26, α2 series: 40) |
|---|---|
| AS‑interface Link Out outputs | 4 outputs (A01‑A04) |
| Active state control signal | N01 = 0 indicates Active state |
The controllers are programmed with the AL‑PCS/WIN‑E programming software.
Up to four AS‑interface “Link Out” outputs can be added.
Symbol 1 indicates a danger that will cause physical and property damage.
