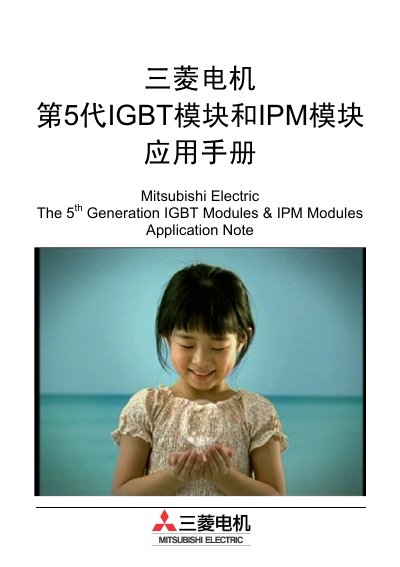

Mitsubishi Electric 5th Generation IGBT & IPM Modules Application Note

About this manual

This application note from Mitsubishi Electric introduces the 5th‑generation IGBT modules and IPM modules. It provides an overview of module characteristics, naming conventions, and typical use in AC motor drives and general power applications.

The document details safe installation practices, thermal design, reliability testing, and protection functions such as UV (under‑voltage), OT (over‑temperature) and SC (short‑circuit) for the IPM modules, along with wiring diagrams and recommended driver conditions. This manual is written in Chinese.

What's inside

• IGBT Module General Overview
• IGBT Module Installation
• IGBT Module Reliability
• IGBT Module Usage Guidelines
• IPM Concept and Advantages
• IPM Application in AC Motor Control
• IPM Model Selection and Thermal Design
• IPM Control Interface
• IPM Power Supply Design
• IPM Protection Functions

Frequently asked questions

What safety specifications are covered for the IGBT modules?

The manual includes safety specifications such as UL compliance for the IGBT modules.
